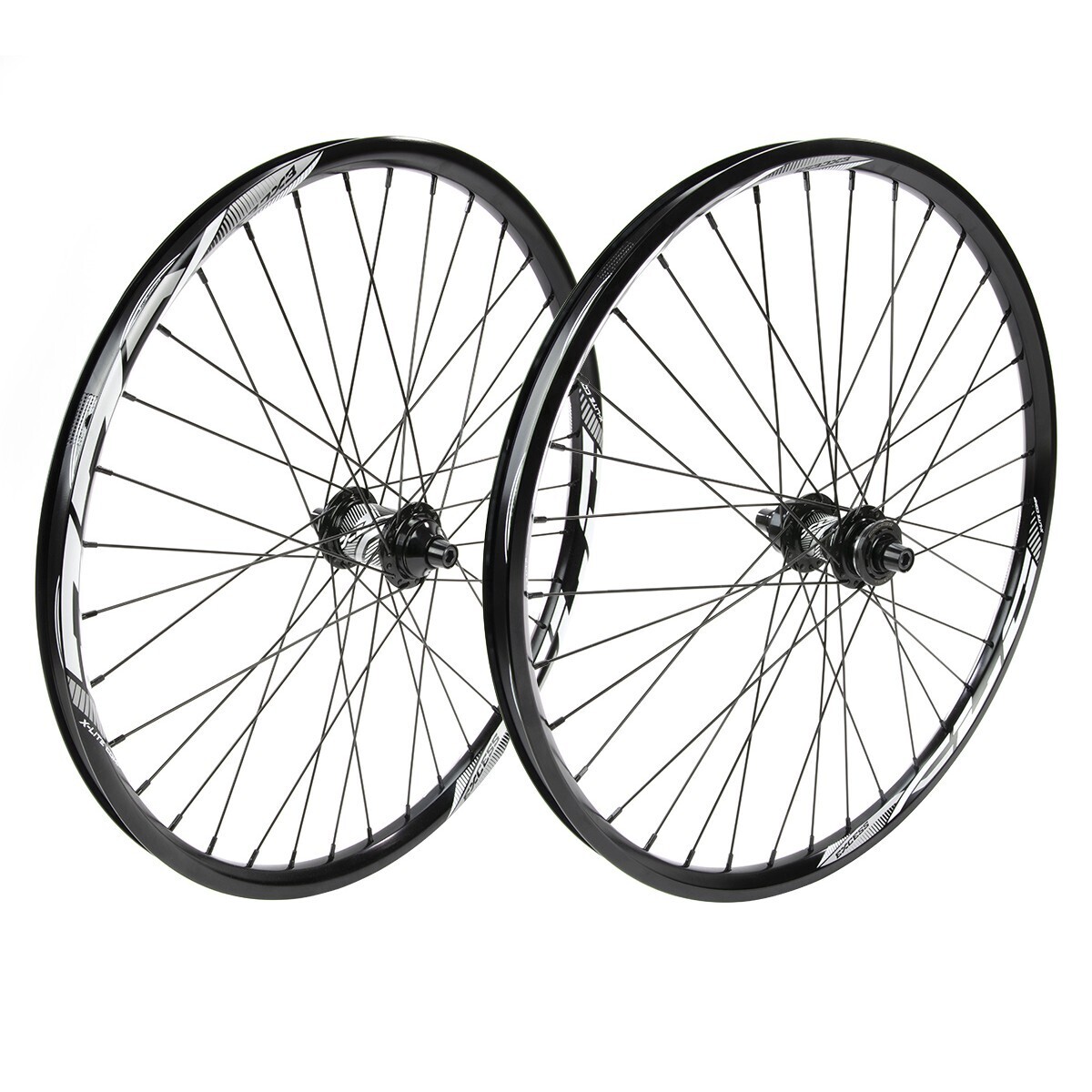

Excess XLC-1 Pro Lite/Pro 24” 507x28mm (24x1.50" / 20x1.75") Complete Wheels.
SOLD WITHOUT COG, WITHOUT CENTER LOCK DISC ADAPTER AND WITHOUT 20MM FRONT AXLE ADAPTER !
Excess is excited to offer the all new XLC-1 507 Alloy Wheelset. Track tested and rider approved, the new Excess XLC line are race focused and offer options for all level of racers and budgets!
Pro Lite/Pro 24” Wheelset features a rear Cassette Hub with a 3 pawl, single engagement system, to a 24 ratchet ring inside the rear hub. Rear Cog is not included with the wheel set. The XLC-1 also uses our exclusive rims that offer 2 different rim profiles that feature a low profile, Double walled 6061 T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength.
The rear hub also offers the option for you to be able to convert it for use with a disc brake! We offer this by allowing you to be able to accept a disc brake via an optional Disc Center Lock adapter! This gives you the best of both worlds. The Wheels are set up out of the box for V Brakes, but you can upgrade to Disc at anytime without getting a new rear hub!
For the Front hub, we also offer a front Axle Conversion kit to change it from the stock 3/8 to 20mm! The wheels are delivered with a 3/8 front axle set up, but with the purchase of the optional front 20mm hub conversion kit, you can convert the front hub to 20mm, allowing you to be able to use a 20mm dropout fork!
All the wheels feature new graphics, Black Anodized finish, and 2 unique different Rim Profiles.

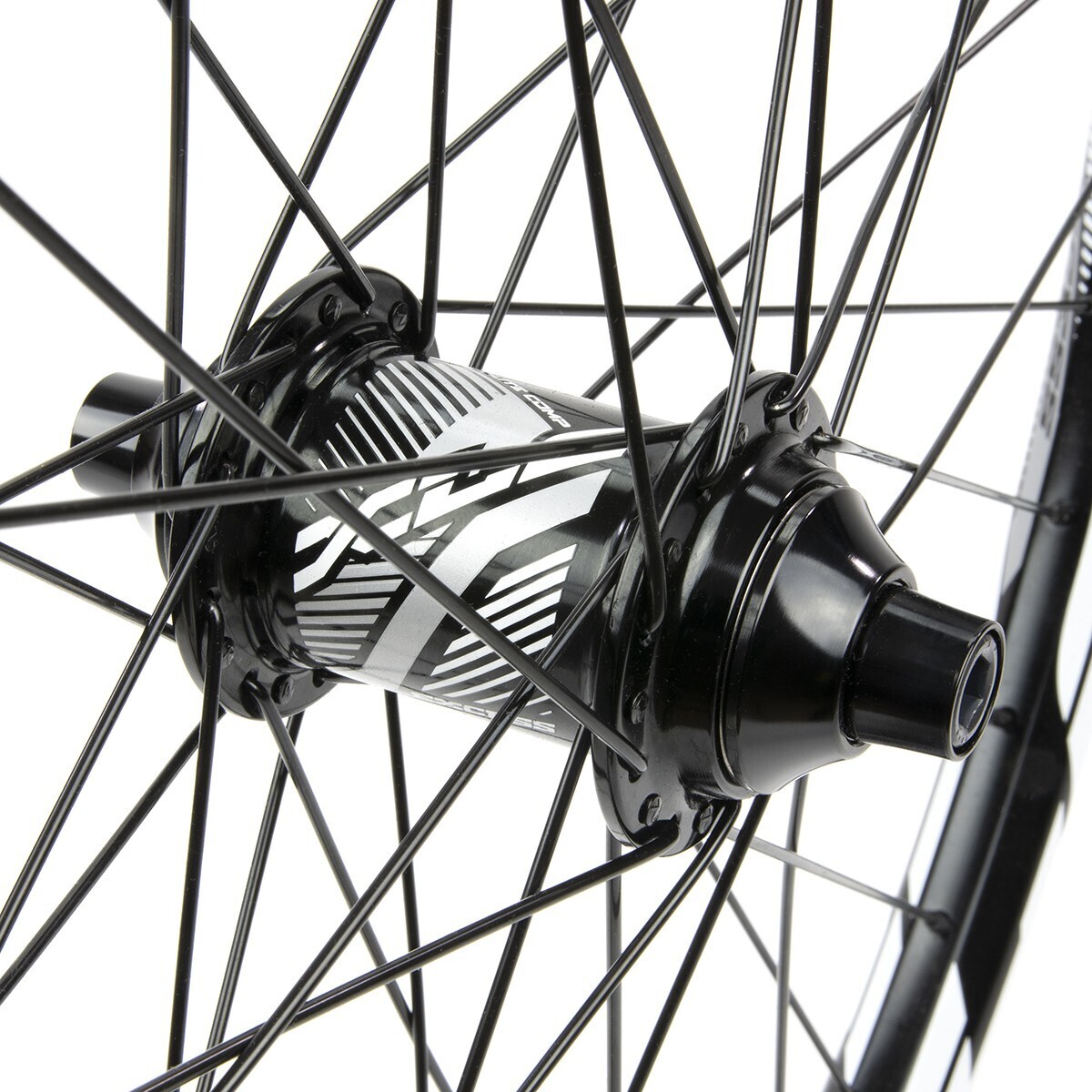

Pro XLC-1 Front Hub Features:
- 2 sealed bearings
- Alloy axle / Alloy end caps
- 3/8” bolts with alloy CNC bolts caps
- Optional 20mm Conversion axle kit sold separately

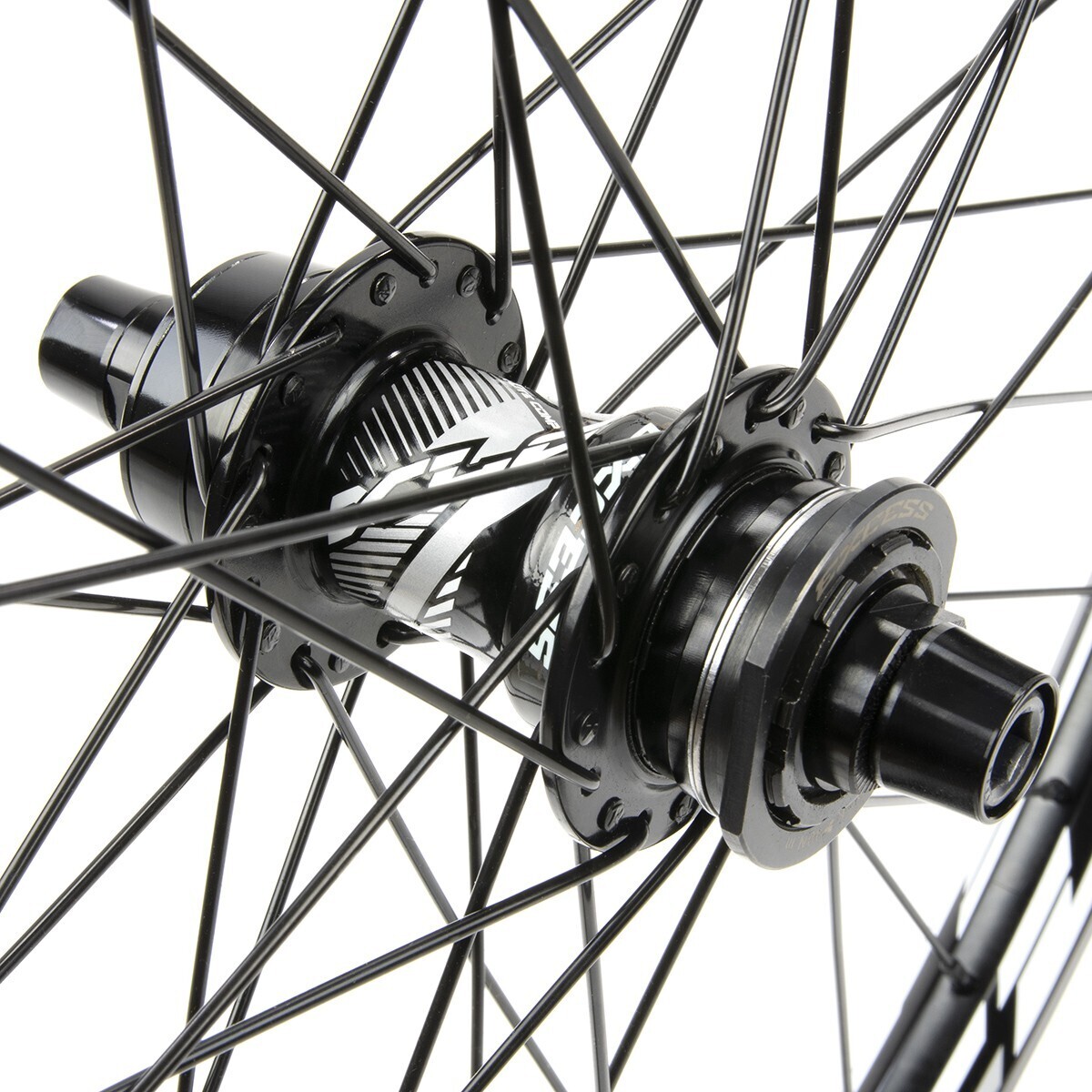

Pro XLC-1 Rear Hub with Center Lock Disc option Features:
- 4 sealed bearing
- Cromo axle
- 3/8” bolts with alloy CNC bolts caps

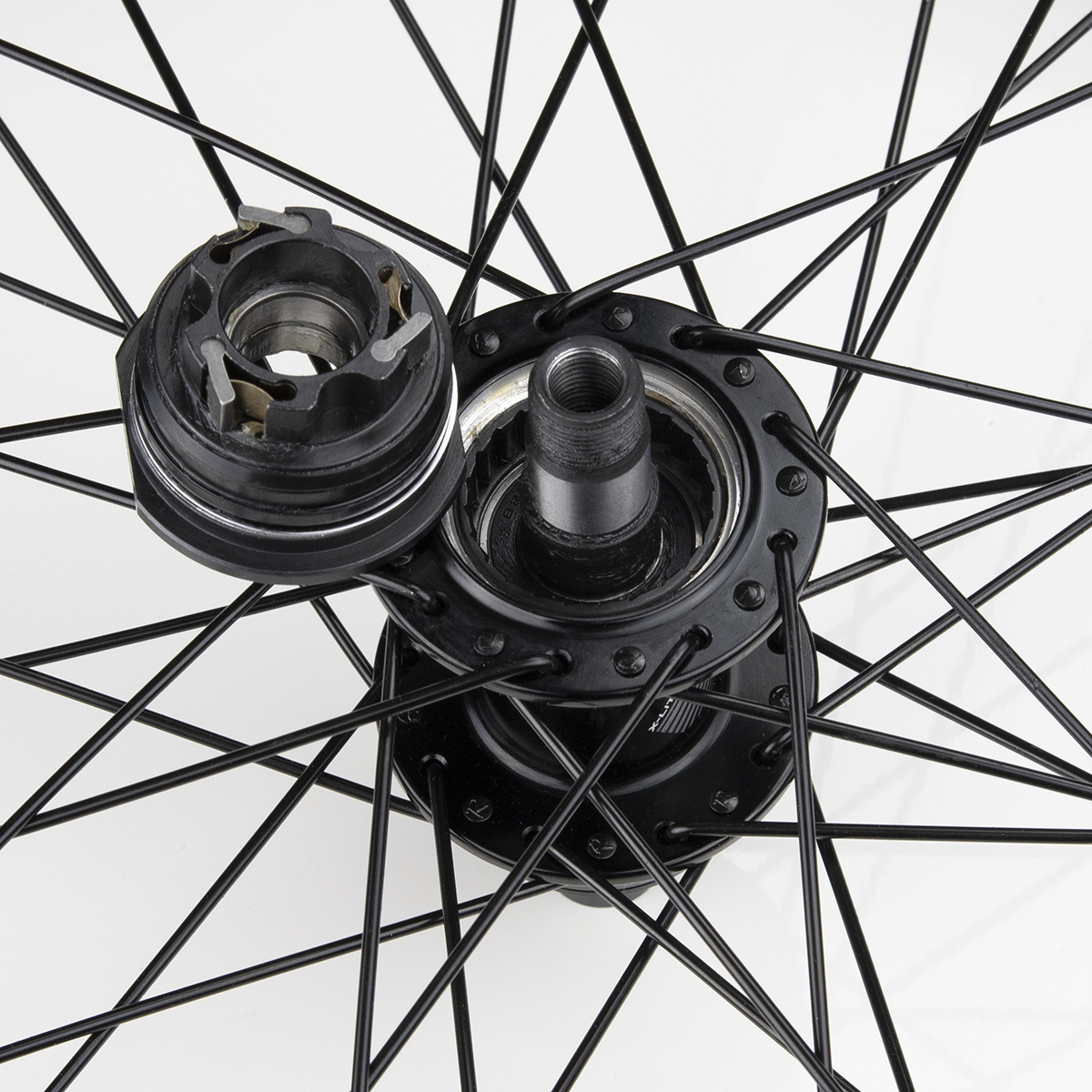

- Cromo driver (3 pawls single engage into a 24 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring
- Wheel set is not delivered with a rear cog
- Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter
- Optional Center Lock adapter not included
Rim Features:
- Double walled 6061 T6 Alloy rim with Optimized Internal Geometry for light weight and optional strength
- Low Profile Aero
- Brakeless Surface Profiles Front rim
- Machined Brake Track on Brake surface on rear rim
- Single process polished, black anodized finish
- Presta valve hole
- Angle Nipples Holes
- Wheels are Laced with 14G Stainless spokes & Brass nipples
- Excess rim tape
Spokes Lenght:
- Front: 234mm
- Rear: 231/233mm
Wheel Weights:
- Front: 954g
- Rear: 1107g
EXCESS XLC-1 507x28MM RIM SPECIFICATIONS
ERD: 24": 491mm
Height: 19mm
Internal Rim Width: 21.9mm (front) 23.3mm (rear)
External Rim Width: 28mm
Spoke tension recommended <115KGF
| SKU | 3728 |
| Brand | Excess |
| Colour | Black |
| Size | 24 x 1.50 - 1.75 |
| Shipping Weight | 3.4000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.500m |
| Shipping Length | 0.730m |
| Shipping Cubic | 0.073000000m3 |
